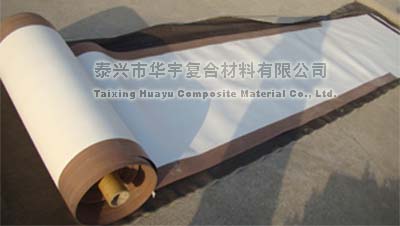

PTFE Coated Fiberglass Conveyor Belt is a typical application of
PTFE fiberglass fabric, so it is characteristic of good temperature tolerance, anti-adhesive, chemical resistance and good abrasion resistance. Besides, antistatic PTFE fabric belt has a high grade of power reaching up to 10 to the 6
th.
PTFE Coated Fiberglass Conveyor Belt is commonly used as the belt of drying machinery, such as the curing conveyor belt with carpet of gum ,vulcanized rubber conveyor belt and food drying conveyor belt.
Jointing methods:
1. baseboard connection, be detachable.
2. joint on skew. Be closed under high temperature and non-removable.
Edge-reinforced ways:
Linoleum or Kevlar cloth
Specifications
:
|
Item No |
Color |
Thickness |
Max width |
weight |
Tensile strength |
Temperature |
HY-F025Z
laminated cloth |
brown |
0.25mm |
3200mm |
490 g/m² |
410/330N/cm |
-140-360℃ |
|
HY-F025H |
black |
0.25mm |
3200mm |
510 g/m² |
410/330N/cm |
-140-360℃ |
|
HY-F035Z |
brown |
0.35mm |
3200mm |
660 g/m² |
560/445N/cm |
-140-360℃ |
|
HY-F035H |
black |
0.35mm |
3200mm |
680 g/m² |
560/445N/cm |
-140-360℃ |
|
HY-F040B |
white |
0.40mm |
4000mm |
780 g/m² |
820/500N/cm |
-140-360℃ |
|
HY-F040H |
black |
0.40mm |
4000mm |
820 g/m² |
820/500N/cm |
-140-360 |
|
HY-F065Z |
brown |
0.65mm |
4000mm |
1150 g/m² |
1080/750N/cm |
-140-360℃ |
|
HY-F090B |
white |
0.90mm |
4000mm |
1550 g/m² |
1500/1250N/cm |
-140-360℃ |
|
HY-F090H |
black |
0.90mm |
4000mm |
1650 g/m² |
1500/1250N/cm |
-140-360℃ |
